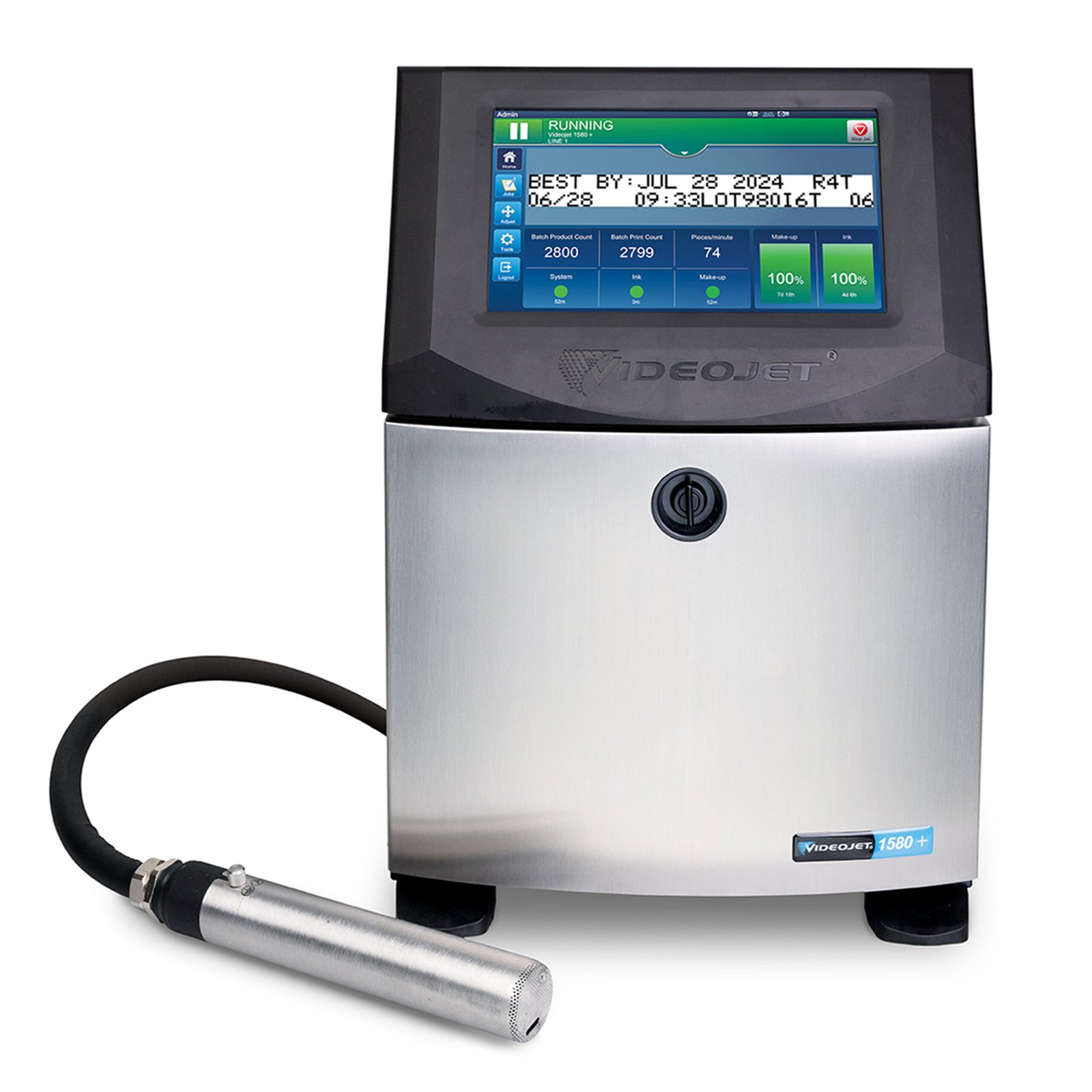

Videojet 1580 Continuous Inkjet Printer
Our Product Range:
1. Inkjet printer, including CIJ Printer, TIJ Printer, Handheld inkjet printer and Ink Cartridges.
2. Laser marking machine, including fiber laser marking machine, CO2 laser marking amchine and UV laser marking machine.
3. Industrial printing solutions, including visual inspection and rejection system and varies of printing solutions .
4. Consumables( Ink, Make-up and cleaning solutions) for all brand of CIJ Printer.
5. Spare parts for all brand of CIJ Printers, including inkcore, keyboard, CSB, pressure sensor, nozzle, valve module ,printhead module , ETH, filter, pump, gutter pump, chip, inkcore board, empty cartridge and etc.
Description
Videojet 1580 Plus Continuous Coding Machine: Unrivaled Industrial Marking Solution
| Line speed capability | Beacon (Alarm light) output |
| Can print 1 to 5 lines of print at speeds of up to 914fpm (278mpm) | Relay output |
| (10 characters per inch, single line of print) | USB 2.0 (2x) |
| Font matrix configuration | Ethernet LAN™ |
| Single-line: 5X5, 5×7, 5X7 Tower, 7×9, 9×12, 10×16, 16×24, 25×34 | Built-in Wi-Fi |
| Twin-line: 5×5, 5×7, 7×9, 9×12, 10×16 | Message storage |
| Tri-line: 5×5, 5×7, 7×9 | More than 250 complex messages |
| Quad-line: 5×5, 5×7 | Environmental protection |
| Five-line: 5×5 | IP55 standard, no plant air required, stainless steel cabinet |
| Linear bar codes | IP65 protected electronics optional |
| UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128; | Printhead |
| Code 39; Interleaved 2 of 5; GS1 | Heated printhead |
| QR codes | CleanFlow™ including positive air, no plant air required (optional) |
| 21×21, 25×25, 29×29, 33×33 | Diameter: 1.63″ (41.3mm) |
| Error correction mode L, M, Q or H | Length: 10.62″ (269.8mm) |
| DataMatrix codes | Printhead umbilical |
| 10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24 | Ultra flexible |
| 16×26, 26×26, 8×32, 32×32, 34×34, 12×36, 16×36, 16×48 | Length: 9.84′ (3m) optional 19.69′ (6m) |
| Nominal character height | Diameter: 0.91″ (23mm) |
| Selectable from 0.079″ (2mm) to 0.40″ (10mm), depending on font | Bend radius: 4.0″ (101.6mm) |
| Throw distance | Make-up fluid consumption |
| Optimal: 0.472″ (12mm) | 5.0ml per hour (MEK at 20°C) |
| Range: 0.197″ (5mm) to 0.591″ (15mm) | Fluids containers |
| User interface | Ink and Make-up Smart Cartridge™ 0.793 qt. (750ml) |
| 10.4″ high-response TFT-LCD touch screen | Temperature/humidity range |
| WYSIWYG touch to edit message editing | 32°F to 122°F (0°C to 50°C) |
| Custom logo/graphics | 0% to 90% RH non-condensing |
| Can be created via optional CLARiSOFTTM software* | With selected inks; actual installation may require additional hardware based on production environment conditions |
| Character sets | Electrical requirements |
| Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, | Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 70W |
| Arabic, Japanese/Kanji, Hebrew, Korean, East European, European/American | Approximate weight |
| Languages and interface options | Unpacked and dry: 46.3lbs. (21kg) |
| English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, | Options |
| French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, | Dust protection kit with CleanFlow™ technology |
| Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, | Dry air kit for high humidity (requires plant air) |
| Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese | Cellular communication |
| Input/output | RS232 connector kit (USB to Serial DIN-5 male adapter) |
| Product detect input | SIMPLICiTY™ Workflow Modules |
| Encoder input | Wide range of accessories |
| Part No. | Description |
| P1580-00-563N-0100 | VJ1580+, World, IP55, 60 Micron, 3m Umbilical, 90° Printhead |
| P1580-00-563S-0100 | VJ1580+, World, IP55, 60 Micron, 3m Umbilical |
| P1580-00-566N-0100 | VJ1580+, World, IP55, 60 Micron, 6m Umbilical, 90° Printhead |
| P1580-00-566S-0100 | VJ1580+, World, IP55, 60 Micron, 6m Umbilical |
| P1580-00-573N-0100 | VJ1580+, World, IP55, 70 Micron, 3m Umbilical, 90° Printhead |
| P1580-00-573S-0100 | VJ1580+, World, IP55, 70 Micron, 3m Umbilical |
| P1580-00-576N-0100 | VJ1580+, World, IP55, 70 Micron, 6m Umbilical, 90° Printhead |
| P1580-00-576S-0100 | VJ1580+, World, IP55, 70 Micron, 6m Umbilical |
| P1580-00-663N-0101 | VJ1580+, World, IP65, 60 Micron, 3m Umbilical, 90° Printhead |
| P1580-00-663S-0101 | VJ1580+, World, IP65, 60 Micron, 3m Umbilical |
| P1580-00-666N-0101 | VJ1580+, World, IP65, 60 Micron, 6m Umbilical, 90° Printhead |
| P1580-00-666S-0101 | VJ1580+, World, IP65, 60 Micron, 6m Umbilical |
| P1580-00-673N-0101 | VJ1580+, World, IP65, 70 Micron, 3m Umbilical, 90° Printhead |
| P1580-00-673S-0101 | VJ1580+, World, IP65, 70 Micron, 3m Umbilical |
| P1580-00-676N-0101 | VJ1580+, World, IP65, 70 Micron, 6m Umbilical, 90° Printhead |
| P1580-00-676S-0101 | VJ1580+, World, IP65, 70 Micron, 6m Umbilical |
Product link: Videojet 1580 Plus Continuous Coding Machine Industrial Marking Ink Jet Coder Expiry Date Qr Code Carton Plastic HDPE Online Cij Inkjet Printer
