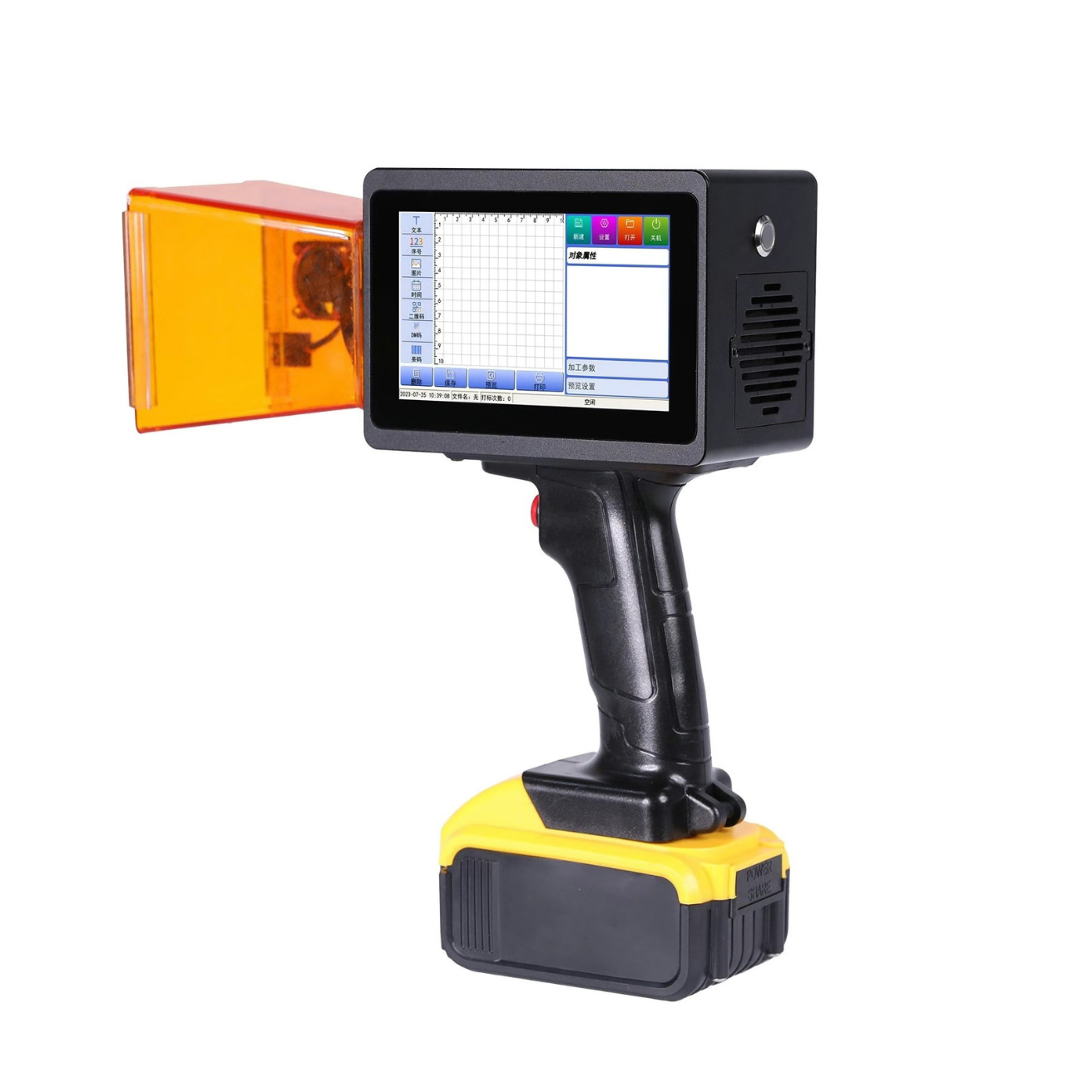

Handheld Laser Marking Machine L4 Plus
10W Portable Laser Marking Machine L4 Plus Laser Marker Engraving Machine for Marking on Metal,Plastic,Carton,Leather,Wood,Silcone,Canvas,Glass,Rubber,Stainless Steel
1. High-Speed Permanent Marking
WDOTMARK’s independently developed operating system delivers clearer and faster encoding, significantly reducing marking time. Compared to traditional methods, marking speed is up to 5 times faster on materials such as metal cans and stainless steel. Utilizing consumable-free intelligent laser technology, markings are permanent and clear, requiring no maintenance.
2. Smart and Portable Design
The compact design, equipped with a removable battery and protective cover (including a safety switch), balances convenience and safety for mobile operations, meeting your marking needs anytime, anywhere.
3. Intuitive and Easy Operation
The built-in 5-inch high-definition touchscreen provides a clear and intuitive interface. Dual red light preview functions (border and graphic preview) enable precise positioning and marking as seen in the image.
4. Powerful Intelligent Encoding
Supports external data import and dynamic variable marking. Easily marks text, serial numbers, QR codes, barcodes, images, dates and times, and variable databases, flexibly handling various complex needs.
5. Wide Range of Durable Applications
Compatible with dozens of materials including wood, coated metals, stainless steel, leather, ceramics, and rubber. Equipped with dual 9900mAh removable batteries, it offers long-lasting power, ensuring uninterrupted operation for extended periods.
| Laser Source | Semiconductor laser diode |
| Wavelength | 450nm |
| Laser Power | ≥ 10W |
| Laser Service Life | 5000 working hours |
| User Interface | 5-inch touch screen |
| Operating System | Embedded Linux Operating System |
| Power Supply | DC 7.4V removable battery(9000mAh) |
| Marking Range | 50mm*50mm |
| Preview Mode | Border Preview + Graphic preview |
| Focal Length Guide | Double red light focusing |
| File Formats | JPG、PNG、BMP, etc. |
| Cooling System | Built-in air cooling |
| Working Condition | 10℃ ~40℃ Maximum 95% relative humidity, non-condensing |
| Print Content | Word, Numbers, Symbols, QR Code, Barcode, Pictures, Datetime, Counter |
| Suitable Materials | Wood, Carton, Bamboo, Leather, Plastic, Food, Paper, Fabric, Photosensitive stamps, |
| Acrylic, Dark glass, Painted metal, Anodized metal, 304 stainless steel, etc. |
Stardard Package List:
① Metal box
②The L4Plus Controller
③ Battery x2
④ Power adapter
⑤ Tool kit
