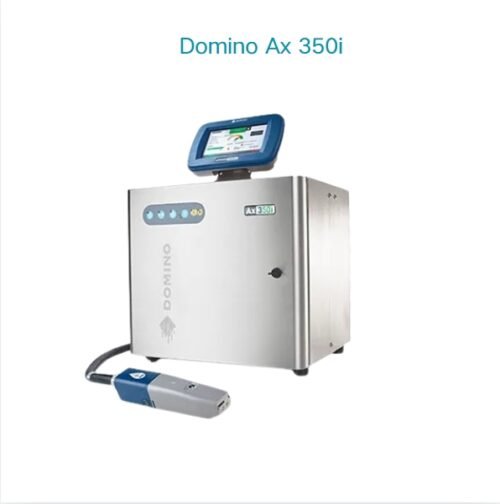

Domino Ax Series | Continuous Inkjet Printers (CIJ) Ax350i Technical Specification
The highly adaptable AX350i Continuous Inkjet Printer (CIJ) has an expansive scope of drop sizes, ink types, and configurations that all fit into a stainless steel cabinet. The i-Pulse printheads make printing codes and text on circuit boards, cables, drink cans, and food storage containers a breeze.
- 54 ink options
- Moveable 7 or 10.4-inch screens
- Has 4 i-Pulse printhead variants
The Domino Ax series sets new standards for continuous inkjet (CIJ) printers with the latest i-Pulse printhead technology. It offers speed, precision and versatility for high-quality, permanent coding on a wide range of materials. With a robust design and Industry 4.0 compatibility, the Ax printers are ideal for demanding production environments in the food, beverage, pharmaceutical and industrial sectors.
- High-precision coding: i-Pulse print head technology for sharp and durable codes.
- Versatile applications: Suitable for a wide range of materials and industries.
- Robust and reliable: IP66 options for demanding production environments.
- Industry 4.0-compatible: connection to Domino Cloud for remote monitoring and diagnostics.
Feature comparison of the Domino Ax series continuous inkjet printers
| Feature | Ax150i | Ax350i | Ax550i |
| Field of application | Simple coding tasks | Complex coding, high speeds | Harsh environments, demanding applications |
| Print speed | Up to 5.1 m/s | Up to 7.1 m/s | Up to 7.1 m/s |
| Printhead options | Straight | Straight, H90, RS and Duo | Straight, H90, RS and Duo |
| Protection class (housing) | IP55 | IP55 (optional IP66) | IP66 |
| Material | Stainless steel 304 | Stainless steel 304 | Stainless steel 316 (seawater resistant) |
| Compatibility | Basic industry protocols | Industry 4.0-compatible | Industry 4.0-compatible |
| Areas of application | Basic applications in food and beverages | Versatile coding in the pharmaceutical, food and industrial sectors | Hard environments in food and beverages |
| User interface | QuickStep 3 with 7-inch touchscreen | QuickStep 3 with 7- or 10.4-inch touchscreen | QuickStep 3 with 7- or 10.4-inch touchscreen |
| Robustness | Basic robustness | Optional IP66 for more demanding conditions | Maximum protection against water and dust |
| Ink options | Standard i-Pulse inks | Advanced i-Pulse inks for MRC and colors | Advanced i-Pulse inks for demanding environments |
