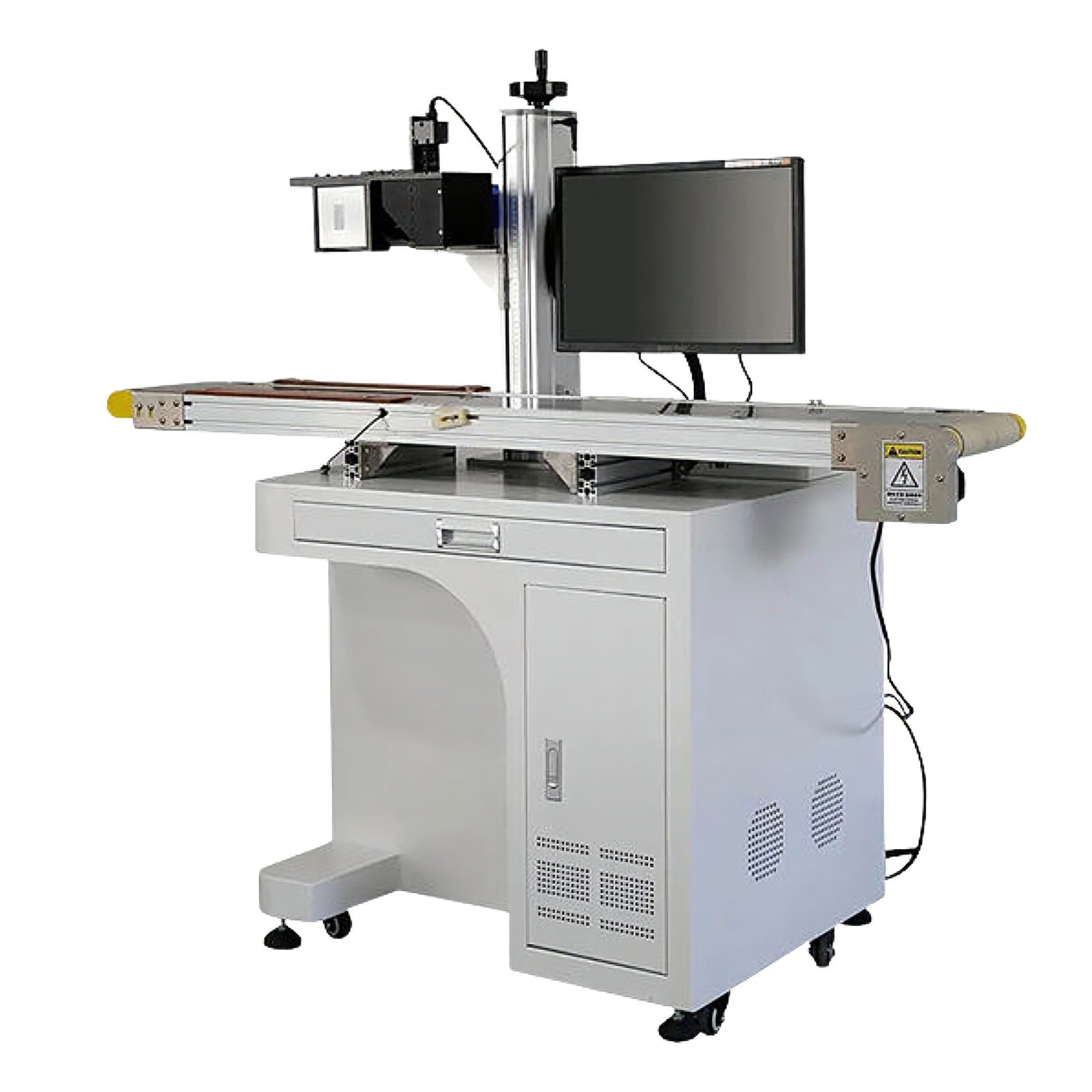

CCD Visual Marking Machine is an advanced device designed to deliver high-accuracy marking for diverse industrial needs. Not only does its built-in CCD visual system automatically align targets, but it also reduces human errors—critical for marking small or irregular parts like electronics components or auto parts. Additionally, it works smoothly on materials such as metal, plastic, and glass, ensuring crisp, durable results.
First, this machine boasts fast marking speed, so it keeps up with high-volume production lines without compromising quality. Moreover, its user-friendly interface simplifies operation, allowing staff to set parameters quickly. Furthermore, the CCD system’s real-time positioning ensures consistent marking even if workpieces shift slightly, enhancing overall efficiency.
What’s more, CCD Visual Marking Machine requires minimal maintenance, cutting long-term operational costs. Its sturdy build also withstands harsh industrial environments, ensuring stable performance over time. Whether for serial number engraving, logo printing, or QR code marking, it meets strict industry standards. In short, this machine blends precision and reliability, making it a top choice for industrial marking tasks.
| Project |
Parameter |
| Model |
T-F20，T-F30，T-F50，T-F70，T-F100 |
| Laser power |
20W/30W/50W/70W/100W |
| Marking area |
110*110mm-300*300mm/600*600mm/(optional) |
| CCD visual range |
120mm (130 mega-pixels/500 mega-pixels (optional) +1.5 m conveyor) |
| Laser wavelength |
1064nm |
| Working accuracy |
0.002mm |
| Marking Depth |
0-0.5mm |
| Minimum font for marking |
0.15mm |
| Minimum character |
0.2mm |
| Marking speed |
0-7000mm/s |
| Operating system |
Win7 and Win10/32 bit and 64 bit |
| Laser source |
MAX (Raycus can be choose) |
| Repetition frequency |
20-100KHz |
| Cooling mode |
Air Cooling |
| Graphic format supported |
AI, PLT, DXF, BMP, DST, DWG, DXP |
| Environmental requirements |
Temperature: 10-35 ℃ ,Humidity: 5-75% |
| Working voltage |
220V 110V, 50/60 Hz |
| Applicable material |
All metal (Stainless steel, Carbon steel, Brass, etc.) and some plastic (ABS, PVC, PES, ETC.) |
| Optional Accessories to Purchase |
D80 Rotating Shaft/ D57 Small Chuck/2D Table (X.Y direction)/ Cutting Fixture |
| Net weight/gross weight (KG) |
140KG / 168KG |
| Machine dimension |
800*750*16500mm (L*W*H) |
| HS Code |
8456110090 |
The visual laser marking machine is an innovative device in modern manufacturing, combining laser marking technology with advanced visual recognition systems. This integrated technology brings many advantages to the production process. Below is a detailed introduction to each advantage:
- High-precision marking
- Positioning accuracy: The visual system has high-resolution image capture capabilities. It can accurately locate the position and characteristics of the marked object—even on workpieces with irregular surfaces or complex shapes—and ensure marking accuracy.
- Delicate marking: Laser marking technology can create extremely delicate marks, such as patterns, texts, and barcodes. It ensures the clarity and readability of information, which is particularly important for industries with micron-level requirements.
- Automatic alignment function
- Real-time adjustment: The visual system can automatically identify the product’s position and orientation, align and adjust in real time, and reduce errors from manual intervention. This matters a lot for batch production involving products of different shapes.
- Adaptability: Whether dealing with fixed or mobile products, the visual laser marking machine can adapt quickly. It cuts adjustment time and boosts production efficiency.
- Flexibility and applicability
- Compatibility with multiple materials: The visual laser marking machine can mark various materials (such as metals, plastics, etc.) efficiently. It has strong adaptability and meets different manufacturing needs.
- Diverse marking content: The equipment can mark complex patterns, QR codes, barcodes, serial numbers, etc. It satisfies the identification needs of various industries, especially in product traceability management.
- High speed
- Fast operation: The laser marking process is faster than other traditional methods (such as screen printing, mechanical engraving). In large-scale production, it can significantly shorten the production cycle and improve production line efficiency.
- Continuous operation capability: The visual laser marking machine maintains high-speed, stable marking performance even during long-term continuous operation. It suits high-volume industrial needs.
- High-quality marking effect
- Wear resistance: Laser marking is non-interfering, so marks won’t wear or fade in subsequent use. It provides long-lasting marks for products.
- Aesthetics: The marking effect is usually beautiful and exquisite. It can significantly improve product appearance quality and enhance market competitiveness.
- Environmental protection and safety
- No pollution: The marking process doesn’t require chemical materials like ink or solvent. It reduces environmental pollution and lowers potential safety risks.
- Safety design: The machine has safety protection devices. These ensure operators’ personal safety during use and meet higher industrial safety standards.
- Non-contact marking
- Reduced risk of injury: Laser marking is a non-contact process. Whether used on hard surfaces or fine molds, it avoids surface damage that direct contact might cause.
- Simple maintenance
- Reduced maintenance costs: The visual laser marking machine has a user-friendly structural design. It makes regular maintenance and cleaning easy, cutting downtime from equipment failure.
- Technical support: The machine comes with comprehensive after-sales service and technical support. This helps operators solve problems quickly.
- Economical
- Cost-effectiveness: Though the initial investment is high, the machine’s high efficiency, low maintenance cost, and long-lasting marking effect can significantly reduce unit product production costs over time. It brings enterprises higher return on investment.
- Improve market competitiveness: Efficient, environmentally friendly, and high-quality production methods can enhance an enterprise’s market image. They attract more customers and increase sales.
